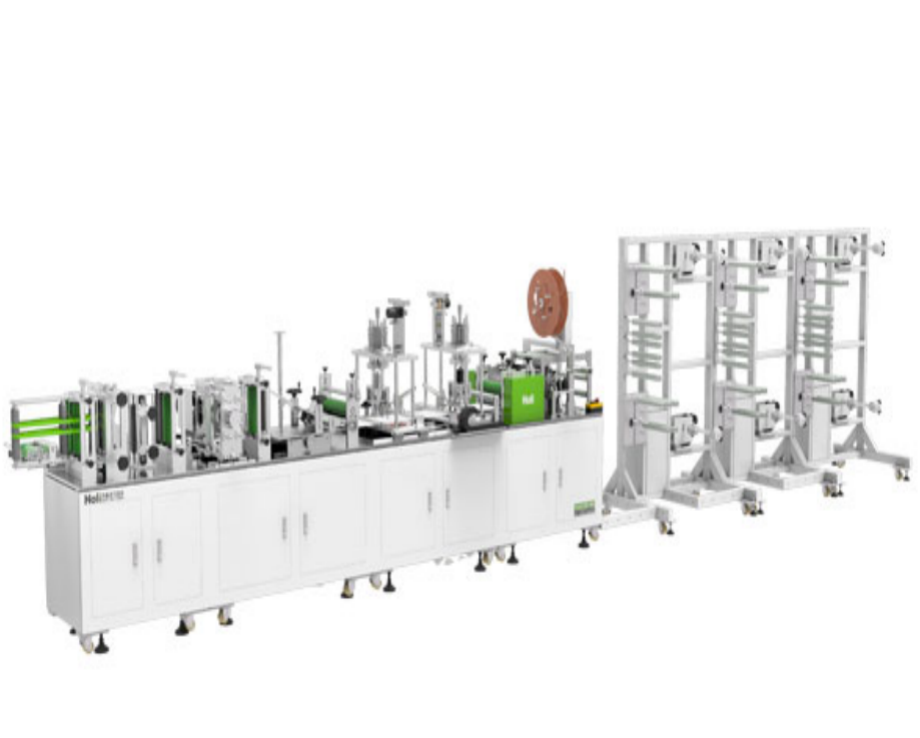

KN95 mask line
| item | parameter |
| Work range | 280mm * infinite length |
| Equipment weight | Equipment weight: ≤2800Kg, floor ｌｏａｄ ≤500KG / m2 |
| Line speed | Depending on the specifications, the speed is between 35 and 50pcs / min. |
| Environmental requirements | Temperature 10-35 ℃, humidity 5-35% HR, non-flammable, corrosive gas, dust (cleanliness of 100,000 ｏｒ more) |
| Line import power | <15KW |
| Power request | 220V / 50HZ / single phase |
| Air ｓｏｕｒｃｅ request | 0.8-2Mpa |
| String welding accuracy | ± 1mm |
| Edge shift | ± 1mm |
| Mask dimensions | L130 mm |
| Cloth type | Back non-woven fabric, shavings, filter material, activated carbon, etc. |
| Product cloth thickness | 1-3mm |
| Line outer dimensions (L * W * H) | 9000 x 1450 x 1850 mm |
